Scrap metal baler
Pushtime:2015-06-15 08:48:32 Visitor:[24458] ¡¾Print¡¿¡¾Return¡¿¡¾Font£ºLarge Medium Small¡¿

Applications:

Y81 series of hydraulic baling presses are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in shapes of cuboids, cylinders & octagons.

Features:

¢Ù Hydraulic drive, manual valve operation or PLC control.
¢Ú Bale-discharging: "turn-out", "push-out", "forward-out", & manual discharging.
¢Û Options for different force, press box size, bale shape & size.
¢Ü Electrical motor, diesel engine or generator for power.

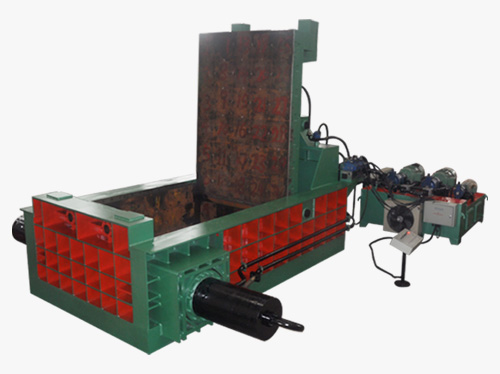

Y81F Series:

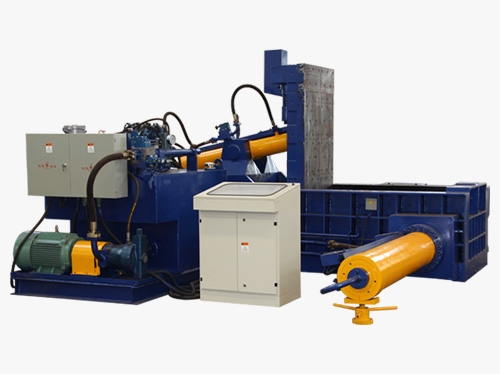

Y81T Series:

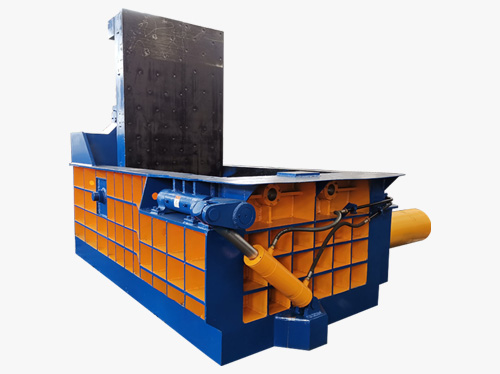

Y81K Series:

Parameter

Y81F Series:

Model Press Force Chamber Size Bale Size Bale Weight Production Rate Motor
KN MM MM KG Tons/Hour KW
Y81F-125 1250 1200*700*600 300*300 50-70 1.0-1.5 15
Y81F-160 1600 1600*1000*800 350*350 100-180 2.0-3.0 22
Y81F-200 2000 1600*1200*800 400*400 120-220 2.5-4.0 37
Y81F-250 2500 2000*1400*900 500*500 250-450 4.0-7.0 44

Y81T Series:

Model Press Force Chamber Size Bale Size Bale Weight Production Rate Motor
KN MM MM KG Tons/Hour KW
Y81T-125 1250 1200*700*600 300*300 50-70 1.0-1.5 15
Y81T-160 1600 1600*1000*800 350*350 100-180 2.0-3.0 37
Y81T-200 2000 1600*1200*800 400*400 120-220 2.5-4.0 44
Y81T-250 2500 2000*1400*900 450*450 250-450 4.0-7.0 60
Y81T-315A 3150 2000*1750*1000 500*500 300-550 5.0-8.0 74
Y81T-315B 3150 2500*2000*1200 500*600 400-700 6.0-10.0 90
Y81T-400A 4000 3000*2500*1200 600*700 500-800 7.0-11.0 90
Y81T-400B 4000 5000*2000*1200 700*700 600-900 8.0-12.0 135
Y81T-500 5000 500*200*200 200*200 6-10 0.4-0.6 90

Y81K Series:

Model Press Force Chamber Size Bale Size Bale Weight Production Rate Motor
KN MM MM KG Tons/Hour KW
Y81K-250 2500*2 2500*2000*1000 500*500 400-700 6.0-10.0 60
Y81K-315 3150*2 3000*2500*1200 600*600 550-850 8.0-12.0 90
Y81K-500 5000*2 3500*3000*1200 700*700 750-1000 11.0-15.0 110
