Scrap Shredders
Pushtime:2015-06-15 08:49:47 Visitor:[8489] ¡¾Print¡¿¡¾Return¡¿¡¾Font£ºLarge Medium Small¡¿

Applications:

XD serious double shafts shredders are applied in shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction.

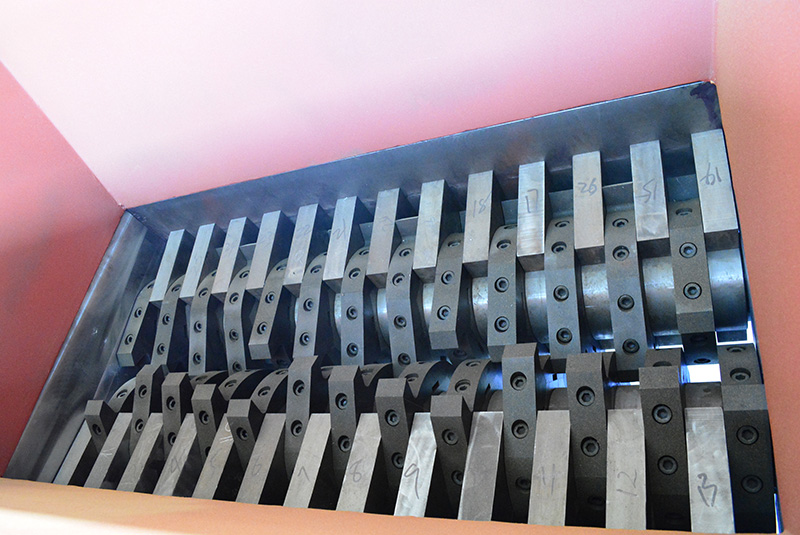

Machine has two rotors built into the machine that rotate at low speeds, high torque and low noise.
Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

Scrap Shredders:

Technical Specifications:

Model Qty of Rotor Blades Thickness of   Rotor Blades Rotor Diameter Speed Shredding   Room Size Machine Weight Motor
(pcs) (mm) (mm) (rpm) (mm) (kg) (kW)
XD-400 20 20 200 15-24 400x250 1100 3+3
XD-600 20 30 285 15-24 600x430 2300 7.5+7.5
XD-800 20 40 285 15-24 800x430 3300 15+15
XD-1000 20 50 320 15-24 1000x500 5000 18.5+18.5
XD-1200 24 50 420 15-24 1000x650 8000 37+37
XD-1500 30 50 480 15-24 1000x740 10000 55+55
