Alligator Shear/Jin Xin Recycling Equipment Co.,Ltd

Applications:

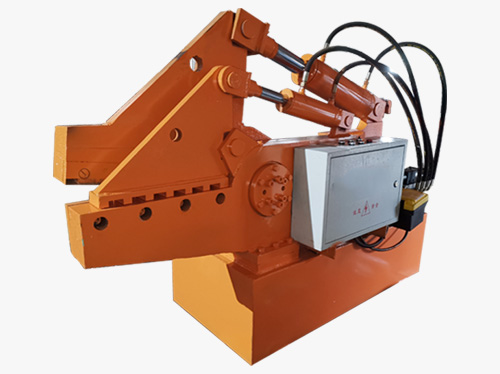

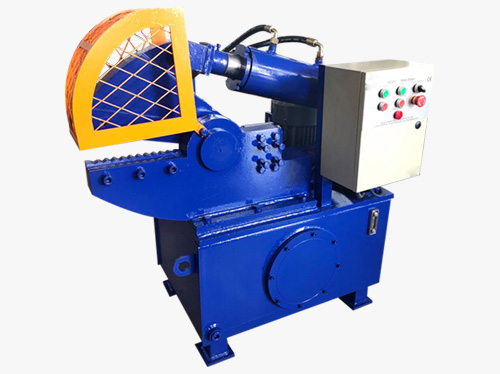

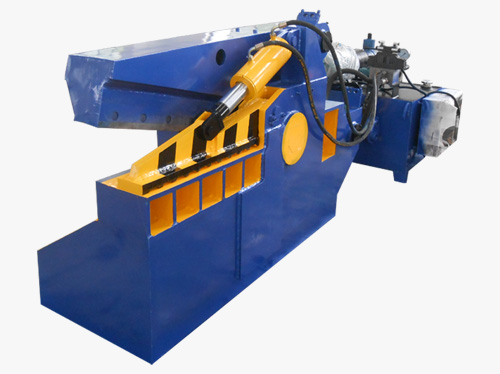

Q43 series of hydraulic alligator shears are applied in recycling companies, automobile dismantling plants, smelting & casting industry to cold-shear section steel and metallic structural parts, to produce acceptable furnace charges.

Features:

① Hydraulic drive, simple operation & easy maintenance
② Options for different force & blade length.
③ No footing bolts needed, diesel engine optional for power.

Q43 Series:

Q43-6
Q43-25
Q43-63
Q43-100
Q43-120
Q43-160
Q43-200
Q43-250
Q43-315
Q43-400
Q43-500

Parameter

Model	Shear Force	Blade Length	Max Cutting Size	Theoretical Shear Frequency	Motor
Model	KN	MM	MM	Times/Min	KW
Q43-6	60	300	10×10 φ12	15-20	3
Q43-25	250	300	15×15 φ18	15-20	5.5
Q43-63	630	600	30×30 φ35	8-12	7.5
Q43-100	1000	600	35×35 φ40	8-12	11
Q43-120	1200	600	40×40 φ45	8-12	15
Q43-160	1600	700	45×45 φ50	6-10	18.5
Q43-200	2000	800	55×55 φ63	6-10	22
Q43-250	2500	1000	65×65 φ70	6-8	30
Q43-315	3150	1200	70×70 φ80	6-8	37
Q43-400	4000	1500	80×80 φ90	5-8	44
